3D Visualiser

Unleash your individuality and create your own QS5 X!

From push handles to castor forks, our online QUICKIE QS5 X visualizer will help you to create the QS5 X of your dreams! Style your ride with 24 vibrant frame colours, 4 castor fork and 4 rim colours. You can even match your cross-brace colour to your frame! Just click the button below to begin.

Start Your Build
Rated ‘Excellent’ on Trustpilot

Easy propelling and lifting with the featherweight QS5 X.

Unrivaled lightweight - A remarkably low transport weight from 7.3 kg for the Fixed Front and 7.5 kg for the Swing Away frame! The QS5 X as the lightest aluminum folding box frame on the market is not only comfortable to lift, transport but also effortless to self-propel to increase the rider’s energy efficiency. The material and construction make all the difference – strong doesn‘t always have to mean heavy.

The frame of the QS5 X is made of high-grade 7000 series aluminum, designed for an exceptionally high strength-to-weight ratio and is used in many aerospace applications where strength, durability and weight are essential factors.

Specifications

Back Height 250 - 500 mm
Max User Weight 22 Stone
Total Product Weight Incl Batteries From 9.9 Kg
Heaviest Part From 7.3 Kg (Without Rear Wheels)
Overall Width 520mm - 790mm
Overall Length 1113 mm
Overall Height 1020 mm
Tyres Solid
Wheel Size Front: 4", 5", 6", 7" | Rear: 22", 24", 25", 26"
Seat Height Front: 360 - 540 mm | Rear: 350 - 520 mm
Seat Width 340 - 500 mm
Warranty 1 Year Manufacturers Warranty
Seat Depth 340 - 500 mm

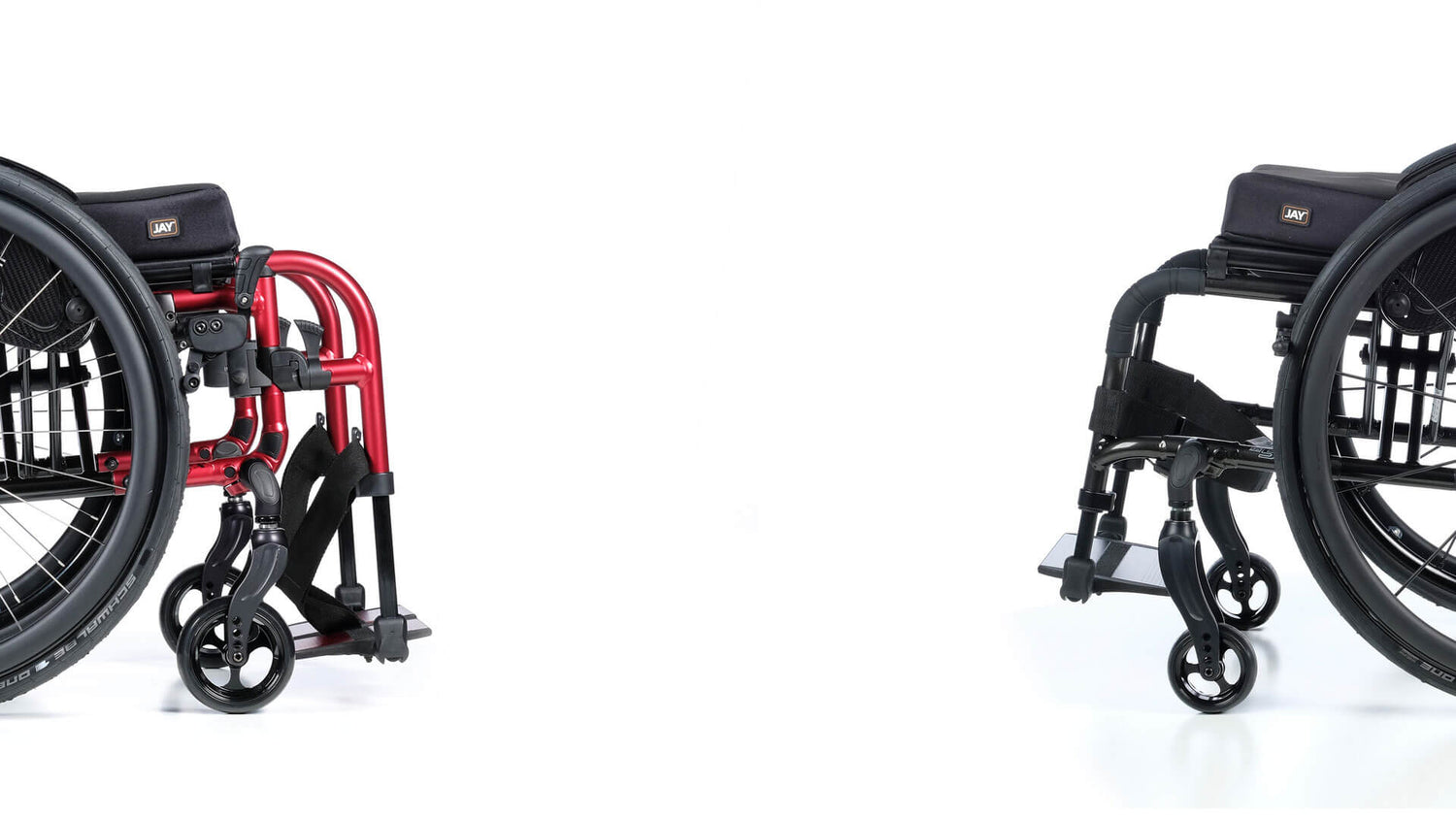

The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.

Fixed-Front or Swing-Away?

The Fixed-Front version has footrests that are permanently attached to the chair frame, providing additional stability and support. This feature can be particularly beneficial for people with higher positioning demands, as it helps to keep the legs in an ideal position.

The Swing-Away version has footrests that can be swung away to the side, which enables a safe and comfortable transfer into the chair, especially from a standing position. By removing the footrest, it´s possible to position the wheelchair closer to the object you want to transfer on, furthermore the pack-size of the wheelchair will be minimised.

Smart Options

Bright removable LED lights.

In many situations, it’s good to have your own light - if you need to go to the bathroom at night and don’t want to illuminate the whole apartment, or if you’re on your way home in the evening and need to see obstacles that could throw you off balance. The QS5 X’s LED lights are a great solution! Discreetly integrated into the overall design of your QS5 X, and removable for charging, the LED lights provide a great feature to light your way when you need them!

SMART OPTIONS

More Options

  • Ergonomic Touch Points

    Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

  • Patented Castor Link

    Thanks to our 3-way adjustable, patented castor links it's possible to adjust straight tracking of the QS5 X. Straight Tracking means less energy lost in counter steering!

  • New Knee Lever Wheel Lock

    Designed with reduced hand strength i mind, this ergonomically shaped wheel lock has undergone a complete redesign to minimise the force required for use, whilst keeping a strong lock on the rear wheel. By flipping backwards to activate, it helps prevent accidental release during transfers from your chair. It's also lighter in weight too.

Call our friendly team about the Quickie QS5 X today on 0333 444 3160.
